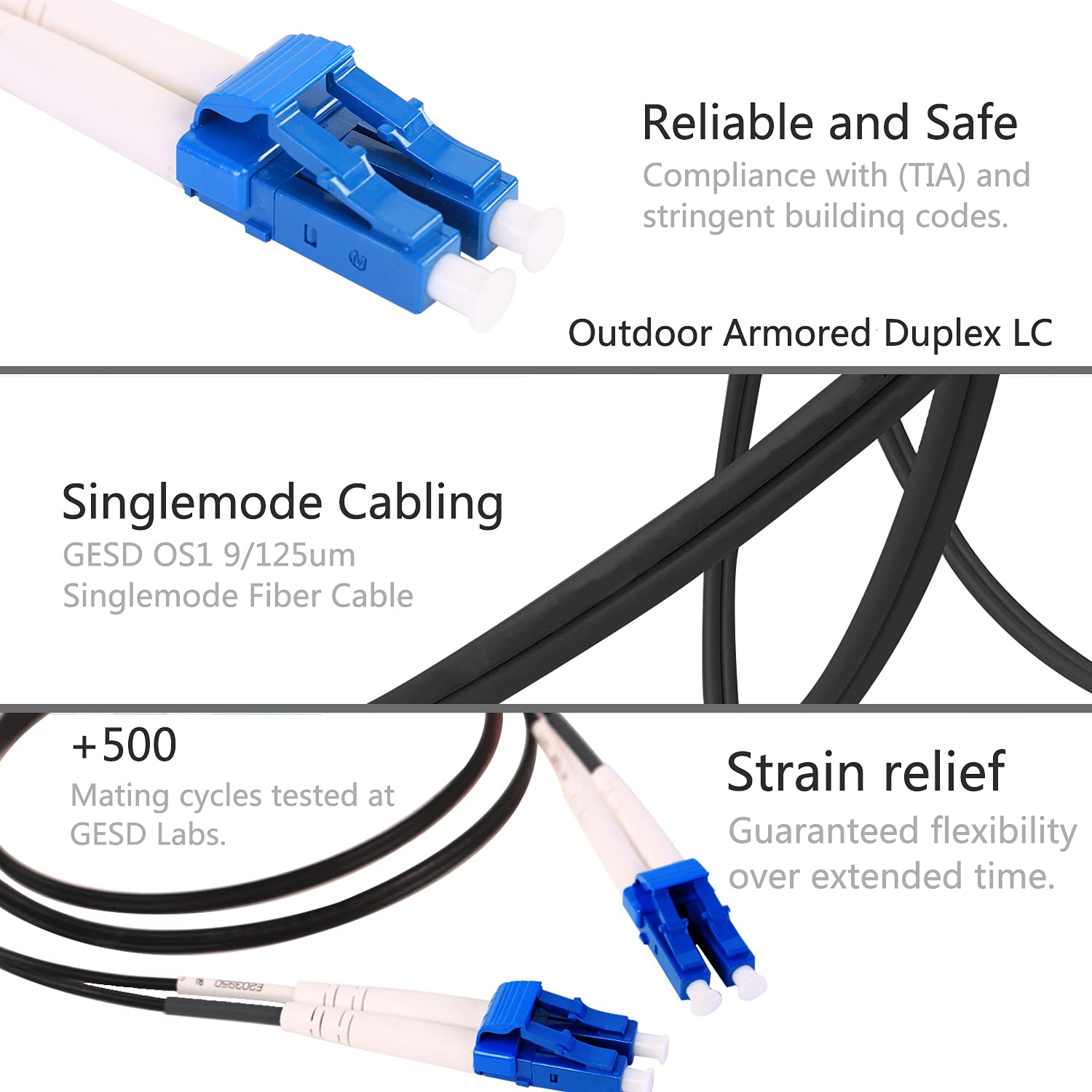

Duplex LC UPC- LC UPC Fiber Optic Jumper Cord Siglemode 3.0mm

  • 1
  • 2

Brand Name : DOWELL

Model Number : DW-2LCU-LCU

Certification : CE

Place of Origin : china

MOQ : 1000 pieces

Payment Terms : T/T, Western Union, Paypal

Delivery Time : 7-15 Days

Insertion Loss : ≤0.3dB

Return Loss : ≥50dB

Repeatability : Additional loss<0.1db, return loss< 5 dB

Interchangeability : Additional loss<0.1db, return loss< 5 dB

Operating Temperature : -40 C- +75 C

Storage Temperature : -40 C- +85 C

Contact Now

Duplex LC UPC- LC UPC Fiber Optic Jumper Cord Siglemode 3.0mm

A duplex fiber optic jumper cord (also called a duplex patch cable) consists of two fiber optic cables joined together, typically used for bidirectional communication (transmit and receive).

Specification:

Insertion Loss ≤ 0.3 dB for SM
≤ 0.4 dB for MM
Return Loss (except MM) ≥ 45 dB (PC)
≥ 50 dB (SPC)
≥ 55 dB (UPC)
≥ 65 dB (APC)
Repeat ability 0.2 dB (500 Cycle Passed)
Operating Temp Range - 40°C to +75°C
Storage Temp Range - 40°C to +85°C
Humidity 95% RH (Non Packaging)

Feature:

1.1 Connector Types:
LC-LC Duplex (most common for high-density applications).
SC-SC Duplex (older, bulkier, but still used).
ST-ST Duplex (common in older multimode networks).
Hybrid Duplex (e.g., LC-SC, LC-ST for cross-connections).
1.2 Fiber Types:
Single-mode (OS1/OS2): Long-distance (up to 100+ km), low loss, used in telecom/cable TV.
Multimode (OM1/OM2/OM3/OM4/OM5): Short-distance (up to 550m for 10G), used in data centers/LANs.
1.3 Cable Structure:
Two separate fibers (Tx & Rx) in a single jacket.
Often zip-cord style (can be easily split).
Available in simplex (single fiber) or duplex (dual fiber).
1.4 Polish Types:
UPC (Ultra Physical Contact) – Blue connectors, standard for most applications.
APC (Angled Physical Contact) – Green connectors, used where low back reflection is needed.
1.5 Common Lengths:
Typically 0.5m to 50m, but custom lengths are available.

Duplex LC UPC- LC UPC Fiber Optic Jumper Cord Siglemode 3.0mm

Application:

2.1 Telecommunication Network

2.2 Fiber Broad Band Network

2.3 CATV system

2.4 LAN and WAN system

2.5 FTTP

Duplex LC UPC- LC UPC Fiber Optic Jumper Cord Siglemode 3.0mm
